Trackbar to Diff Interference

[XCRN]

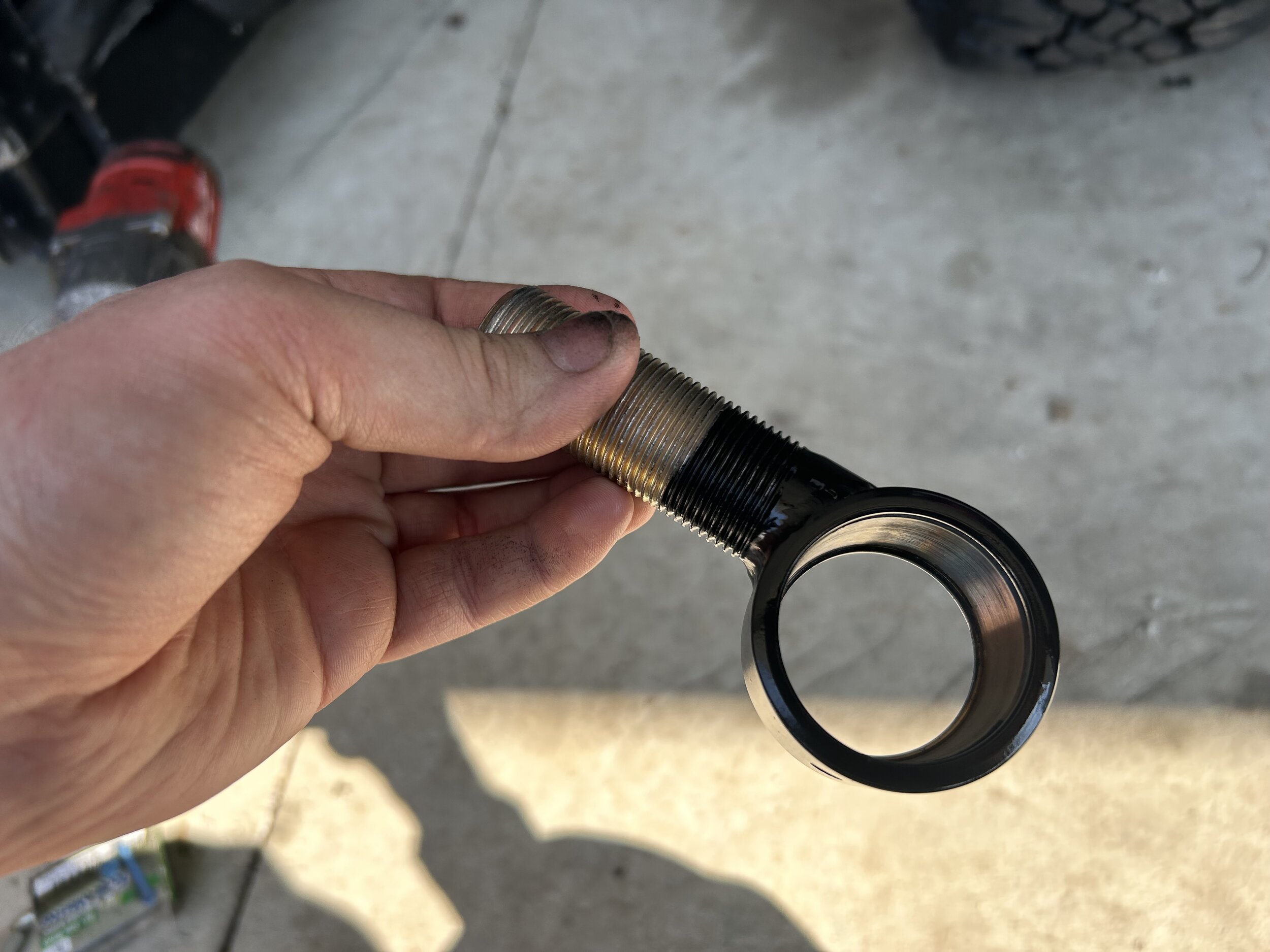

So I made an offset JJ with one of weldable housings and a 1”-14 bolt that I took an end-mill to. I tried to swap it out today but I think the threads are a little messed up since I could not easilly rotate it off. I have a trip next week so I wont be swapping it yet since I dont want risk completely ruining the track bar just before my trip. After I get back, what ever happens…happens.



[jjvw]

So I made an offset JJ with one of weldable housings and a 1”-14 bolt that I took an end-mill to. I tried to swap it out today but I think the threads are a little messed up since I could not easilly rotate it off. I have a trip next week so I wont be swapping it yet since I dont want risk completely ruining the track bar just before my trip. After I get back, what ever happens…happens.

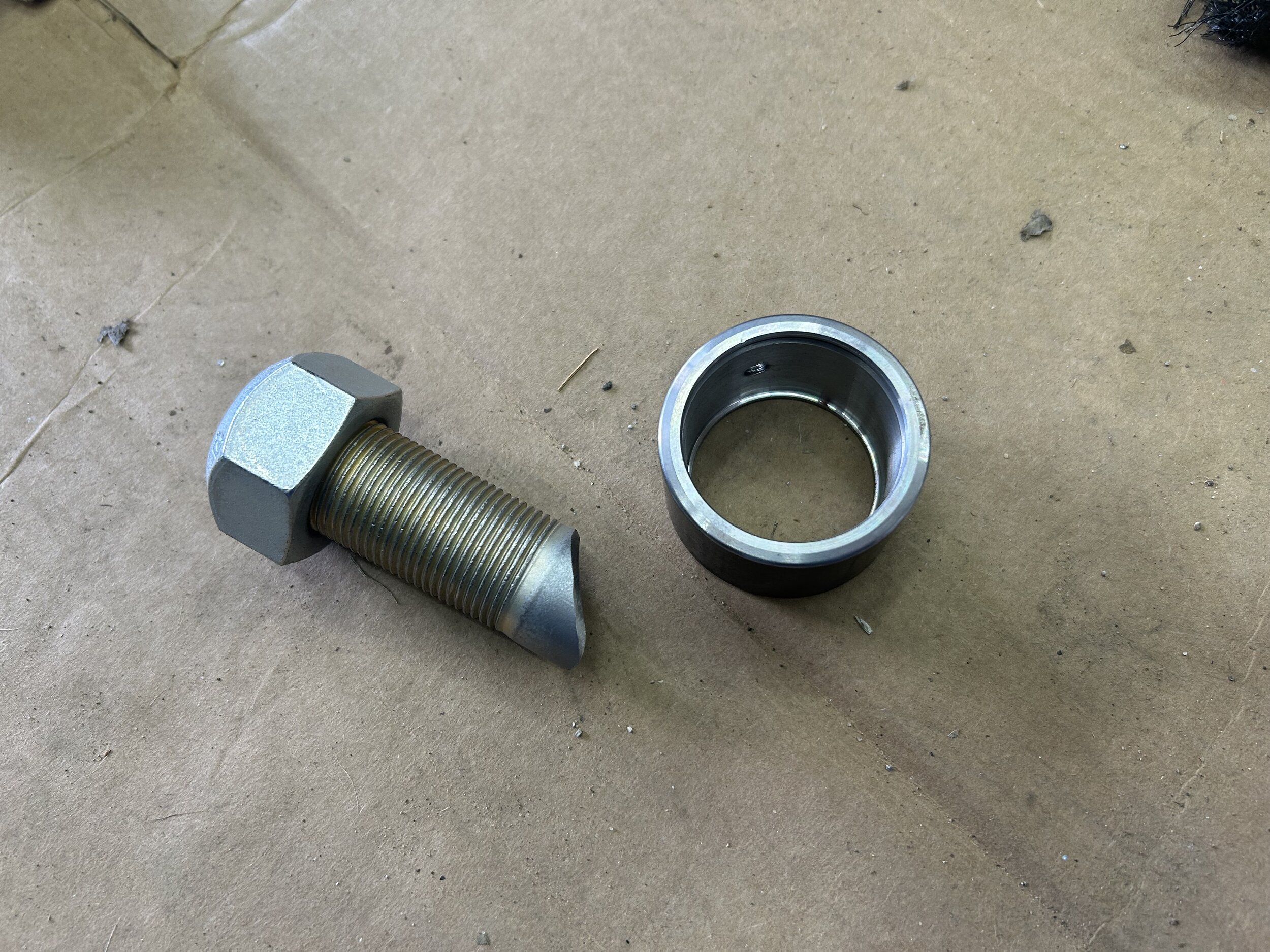

View attachment 513553

View attachment 513554

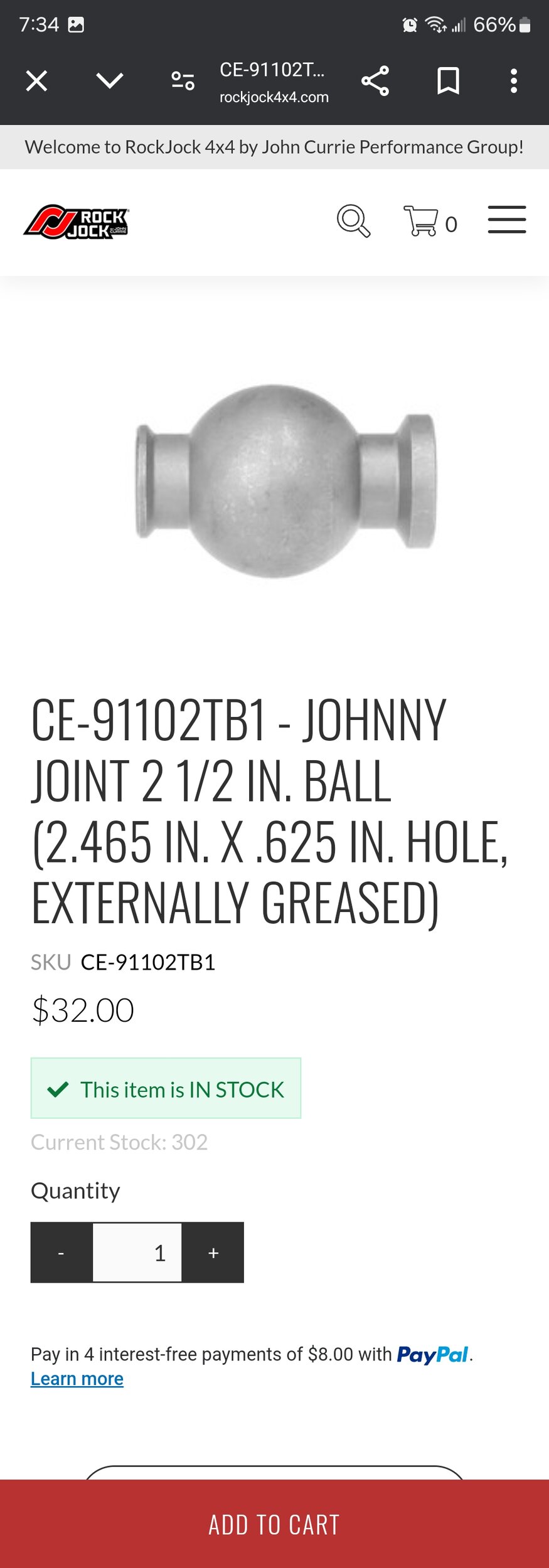

There is a specific Johnny Joint ball for the frame side track bar that has (what would be) the lower flange reduced so the bolt isn't as long.

https://www.rockjock4x4.com/CE-91102TB1



[XCRN]

There is a specific Johnny Joint ball for the frame side track bar that has (what would be) the lower flange reduced so the bolt isn't as long.

https://www.rockjock4x4.com/CE-91102TB1
View attachment 513556

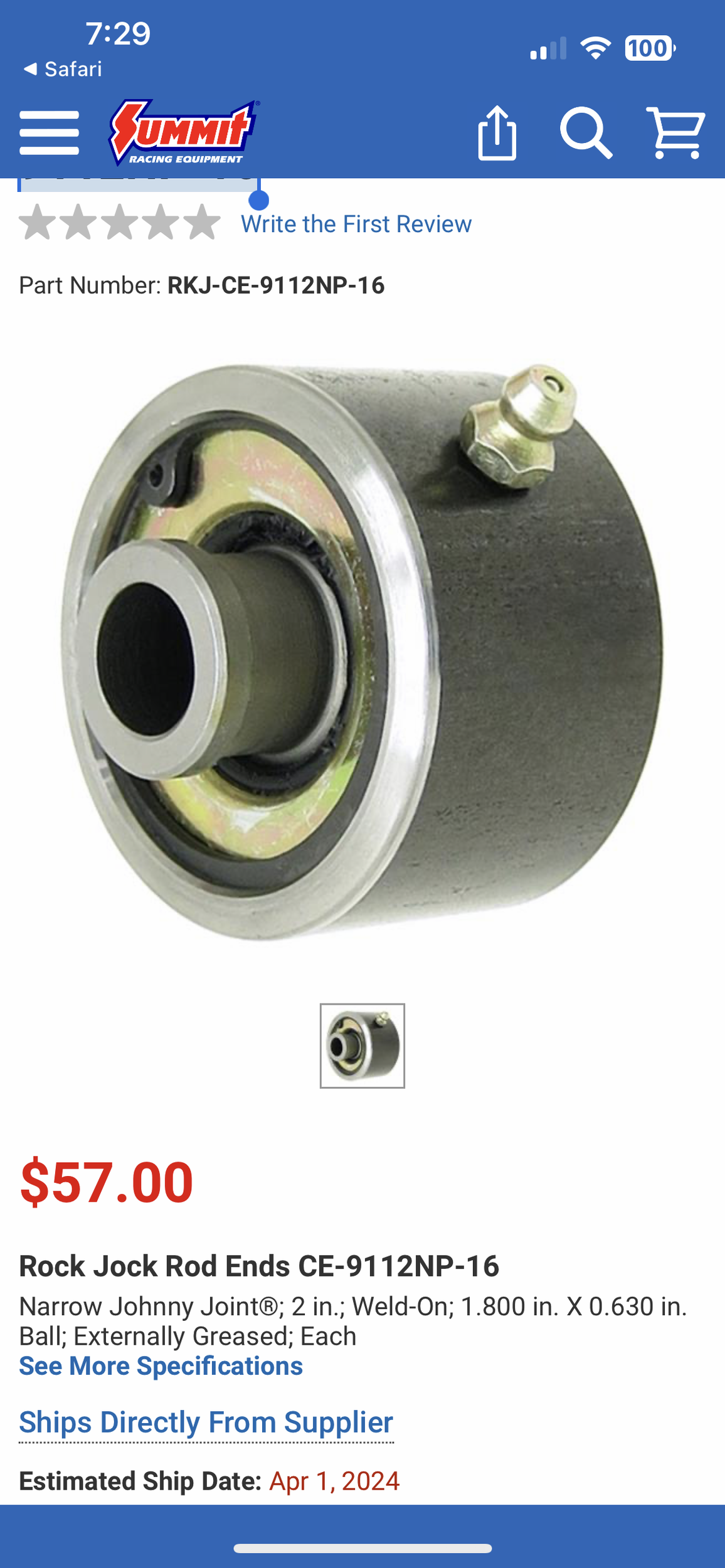

I got the weld-on equivalent to what is on there currently which is 2in narrow body and only 1.80” long.



[XCRN]

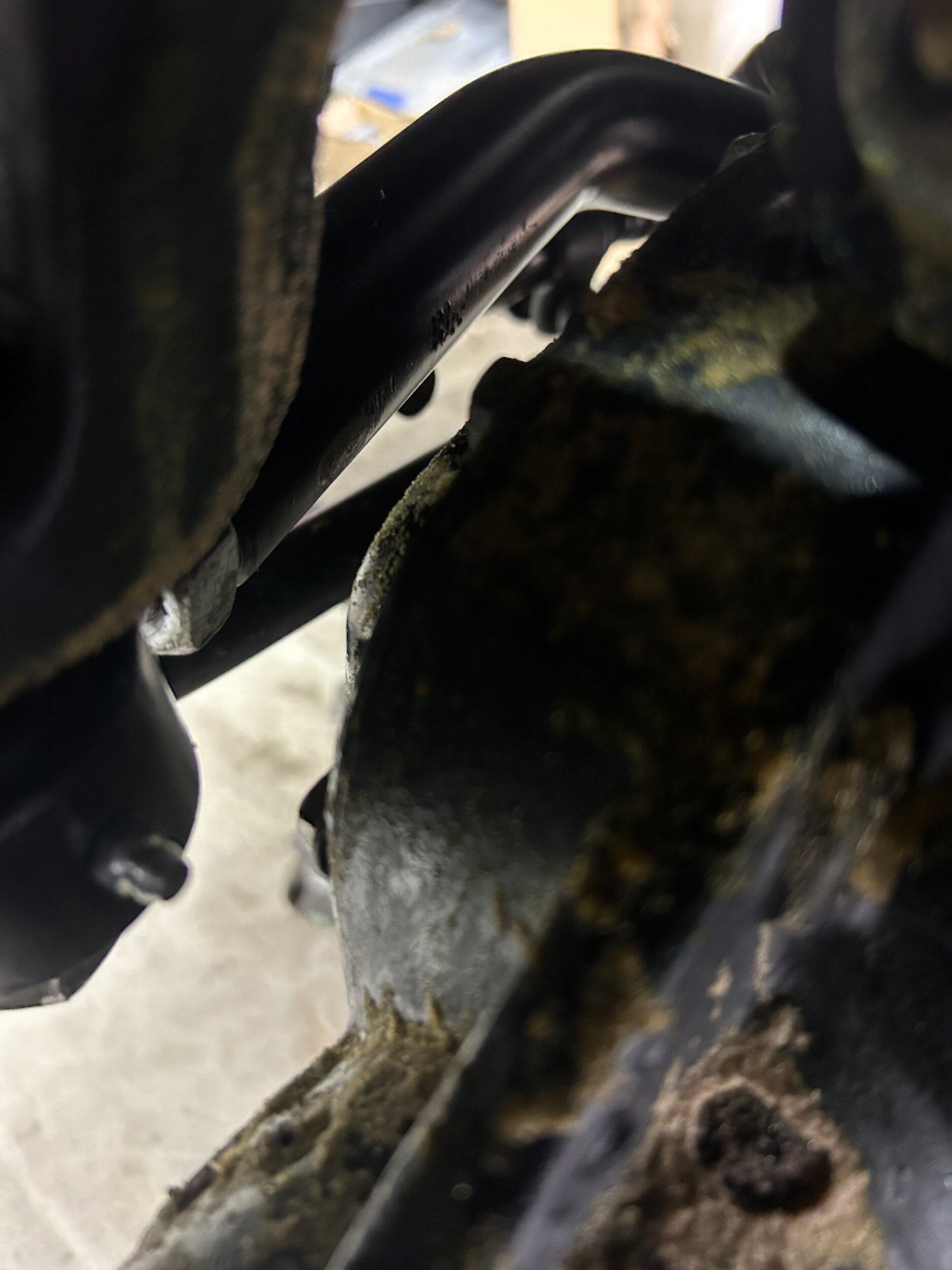

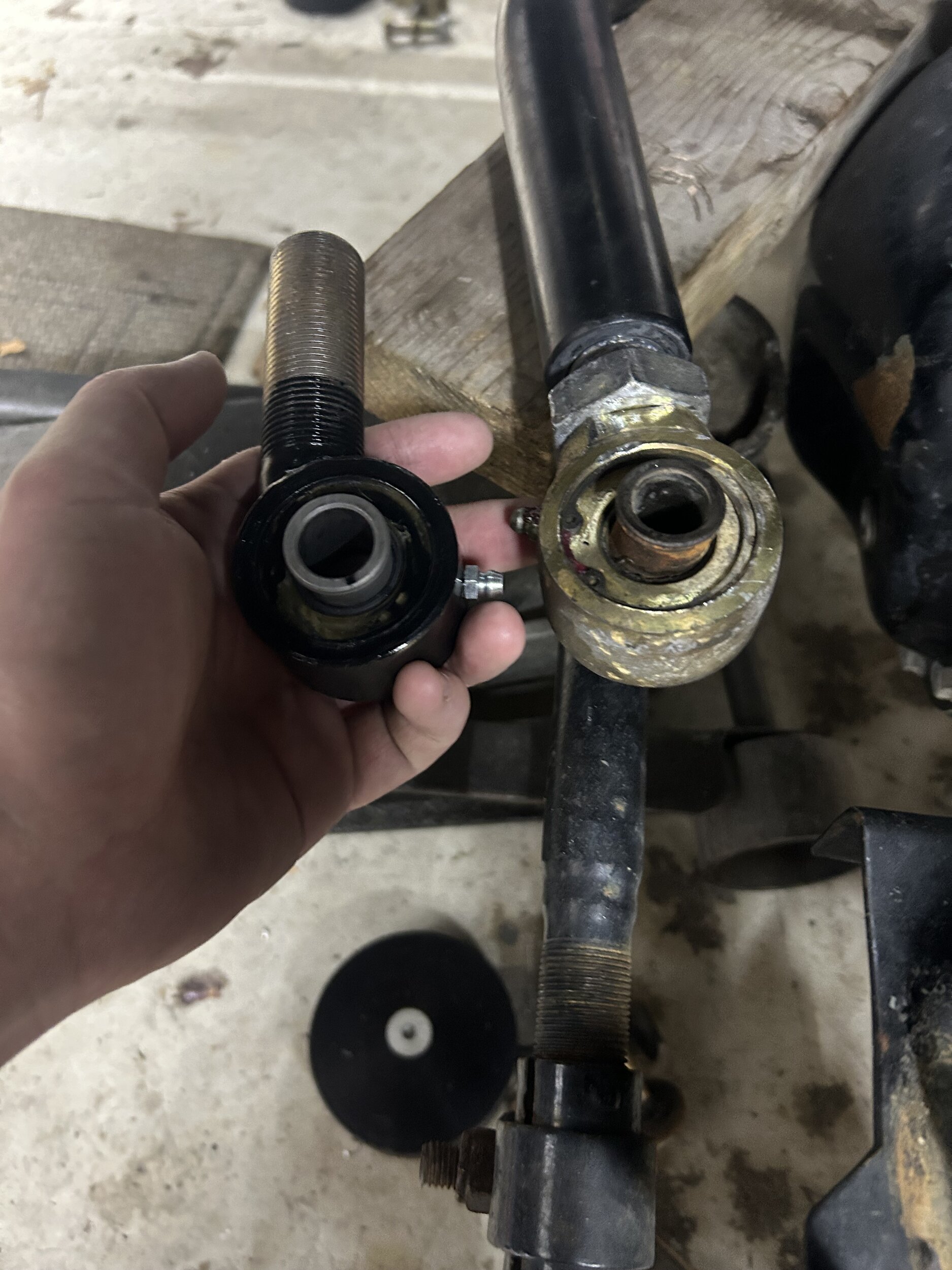

To follow up now that I am home from my dune trip. Got the front track bar completely removed and had to use a big wrench and pipe to remove the frame end joint. Threads were apparently fine so I did not need to wait for a tap but glad I played it safe regardless. Having the threaded stud offset 7/16” works great with no interference on any of the steering. So an offset joint is the way to go with a Core4x4 track bar. Would be nice if they made a forged offset housing.
