My onboard air system

[tobiism]

I wasnt sure if I ever really timed it with 37's, I know I did w/ 35's, I ran home at lunch and timed it to make sure I wasnt talking out of my neck, I wasnt too far off


I started at 7psi took 6:04 to fill to 27psi.

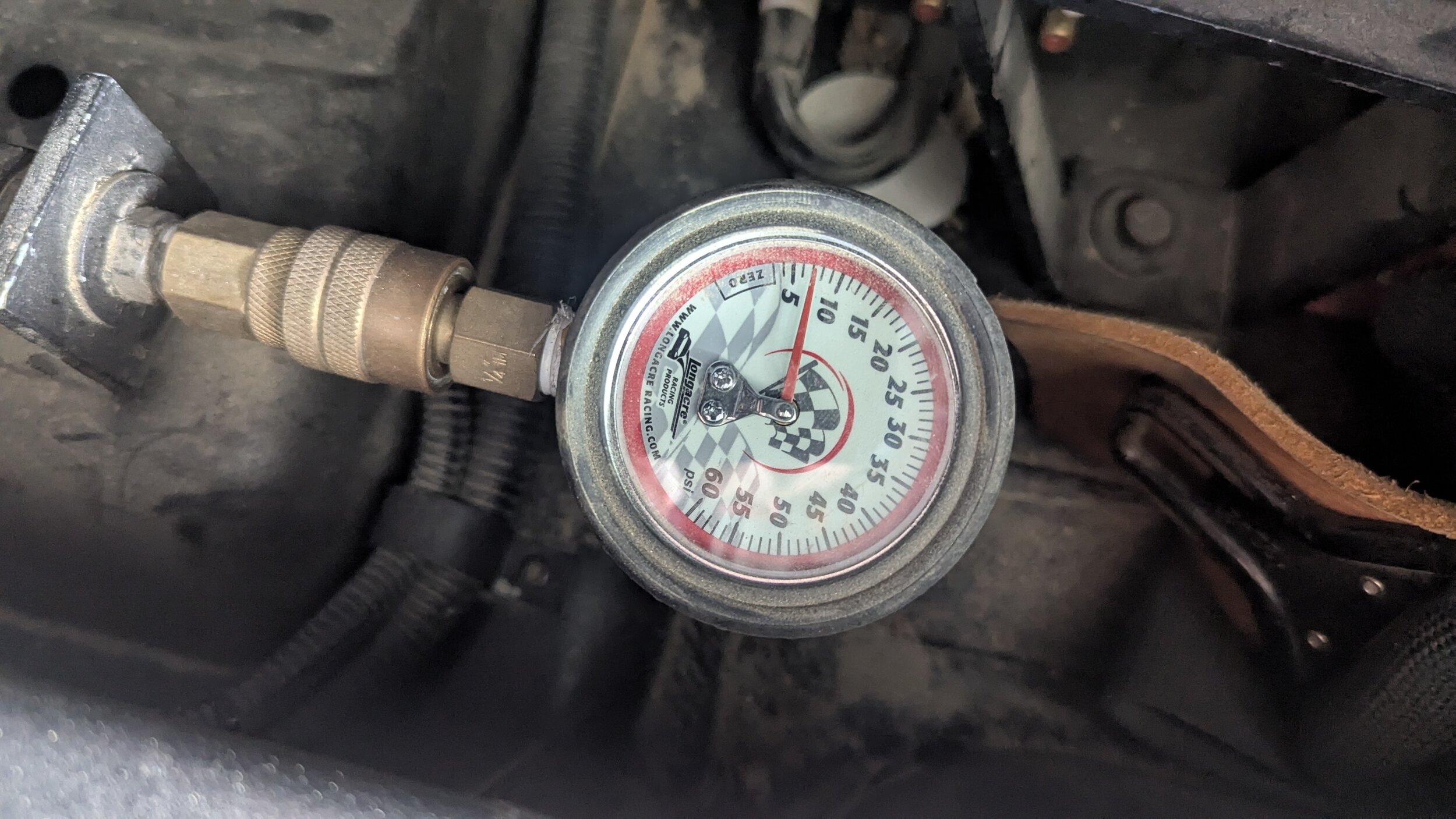

View attachment 611513
View attachment 611512

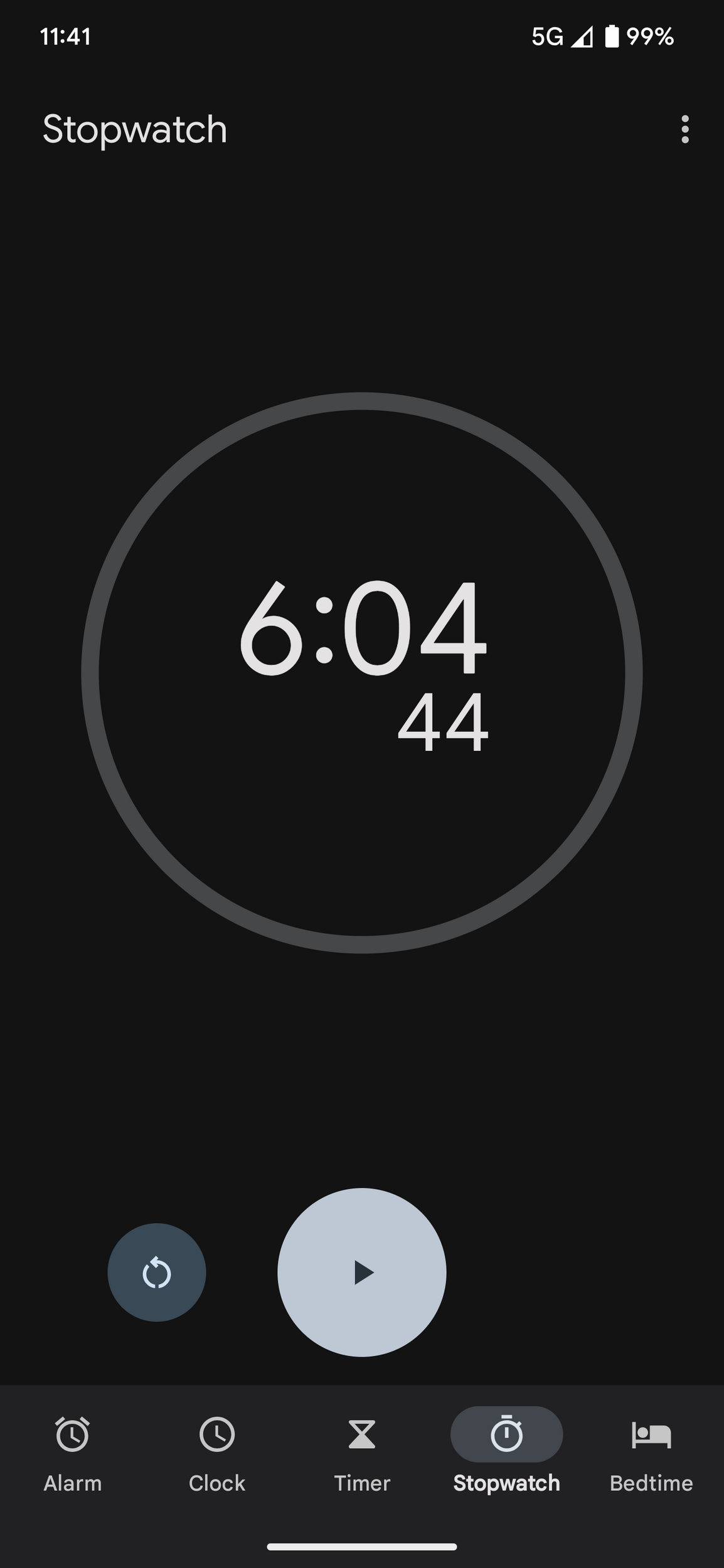

View attachment 611516
Then i aired down to 7psi it took about 4: 30ish, pic didn't take b/c it blinks when pused...

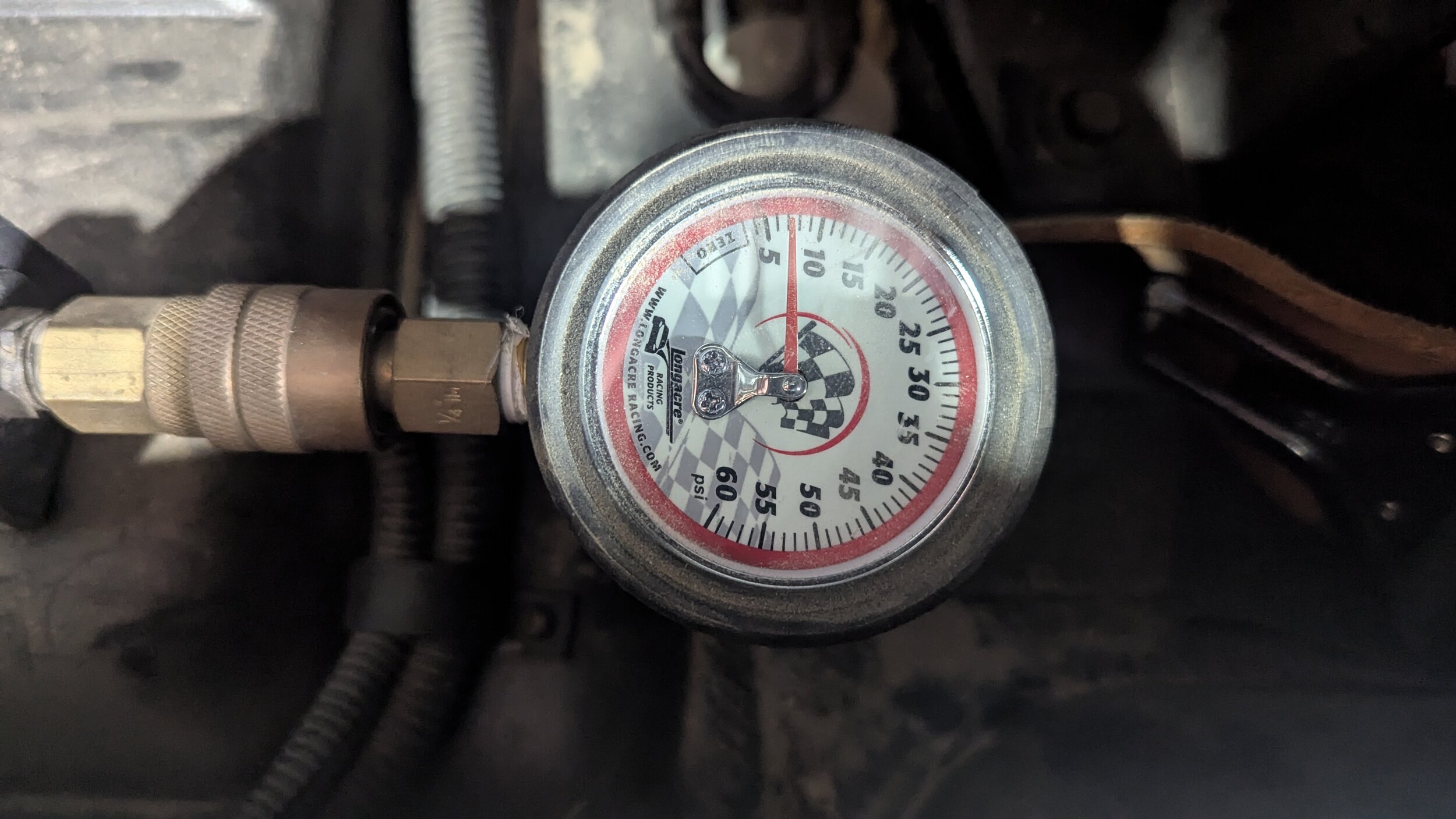

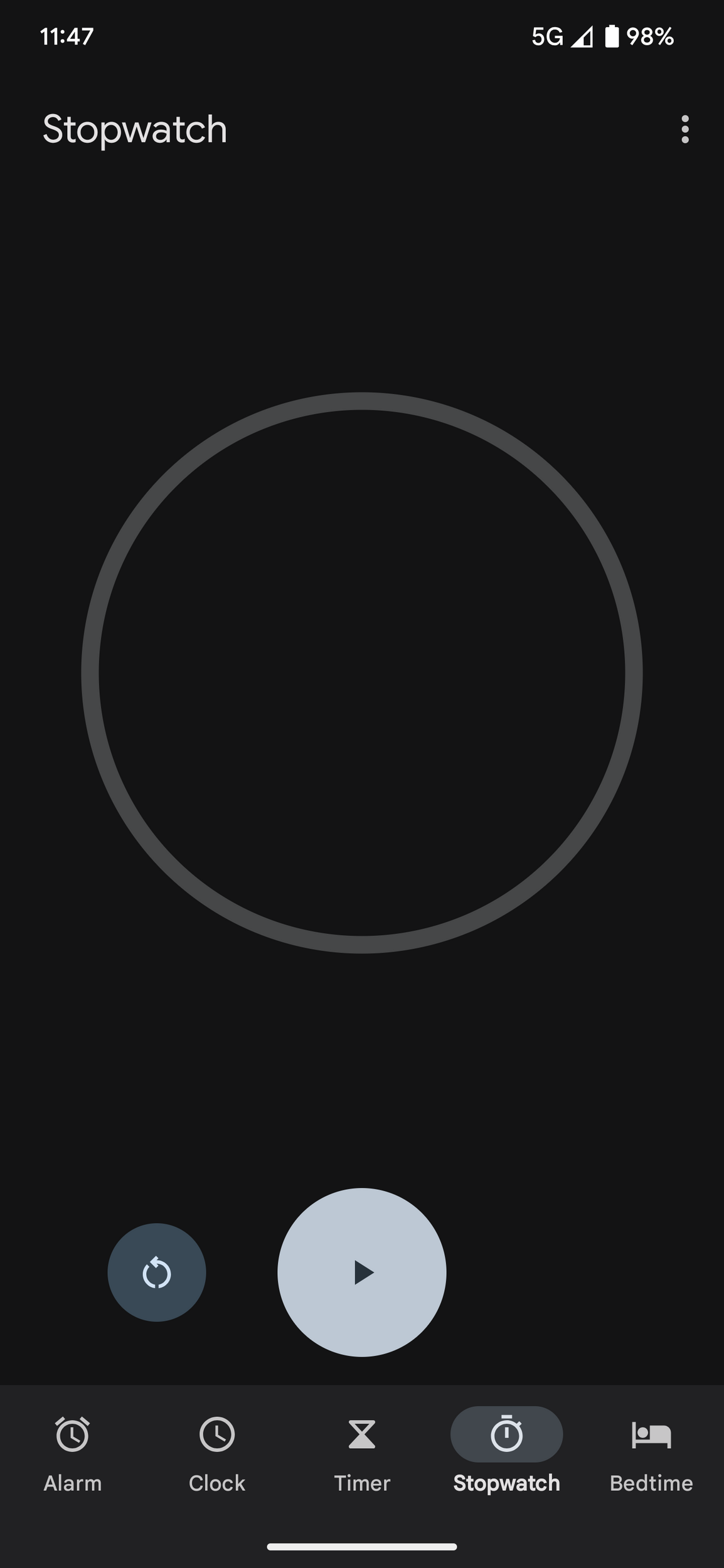

View attachment 611514
View attachment 611515

I then did just one tire, from 7psi to 29psi was 2:01.

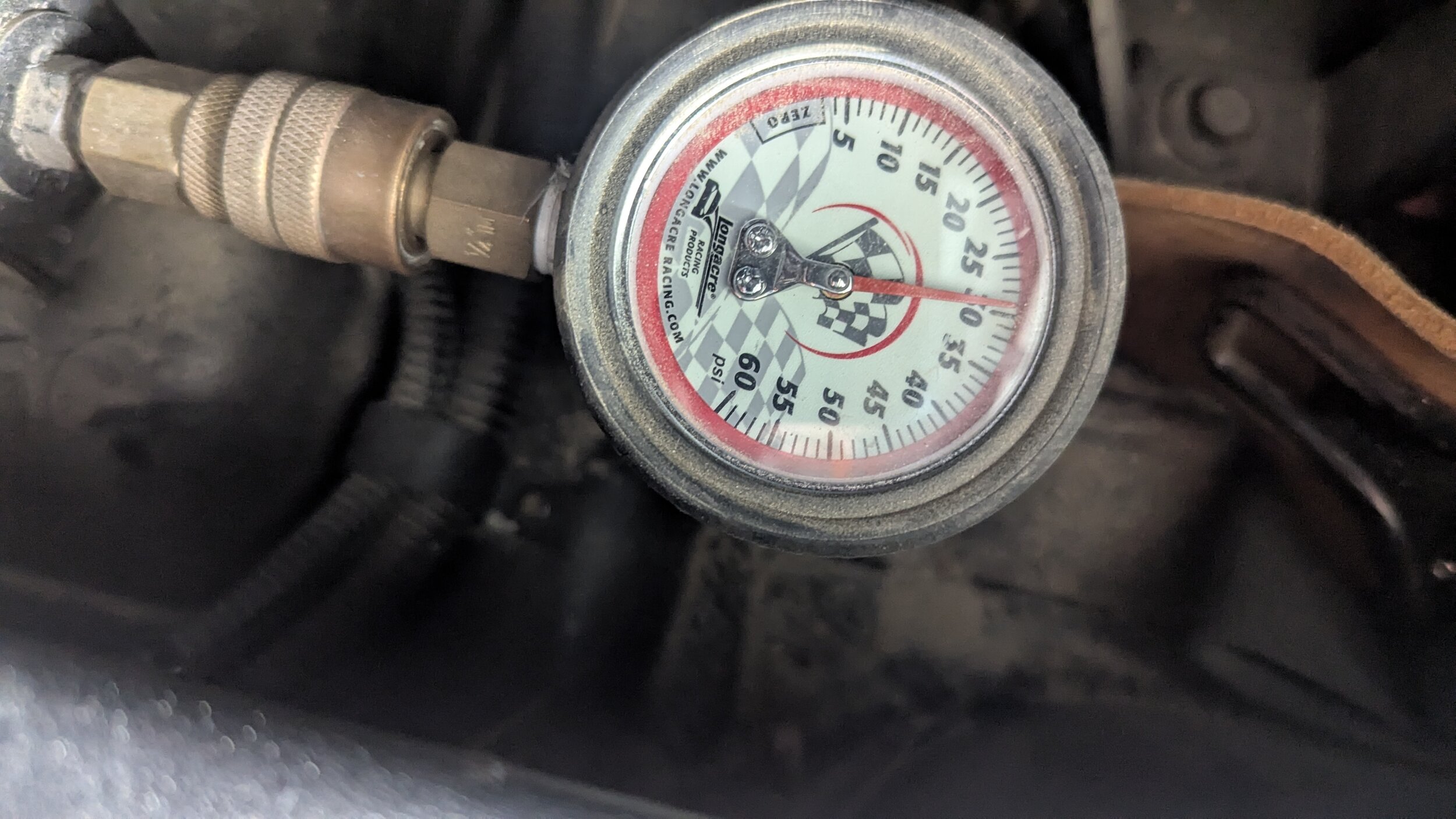

View attachment 611511

A few pics of my set up. I have a 6 port manifold w/ air chuck at each corner & a bleeder on the grill. I keep the hoses in a bag w/ recovery gear.

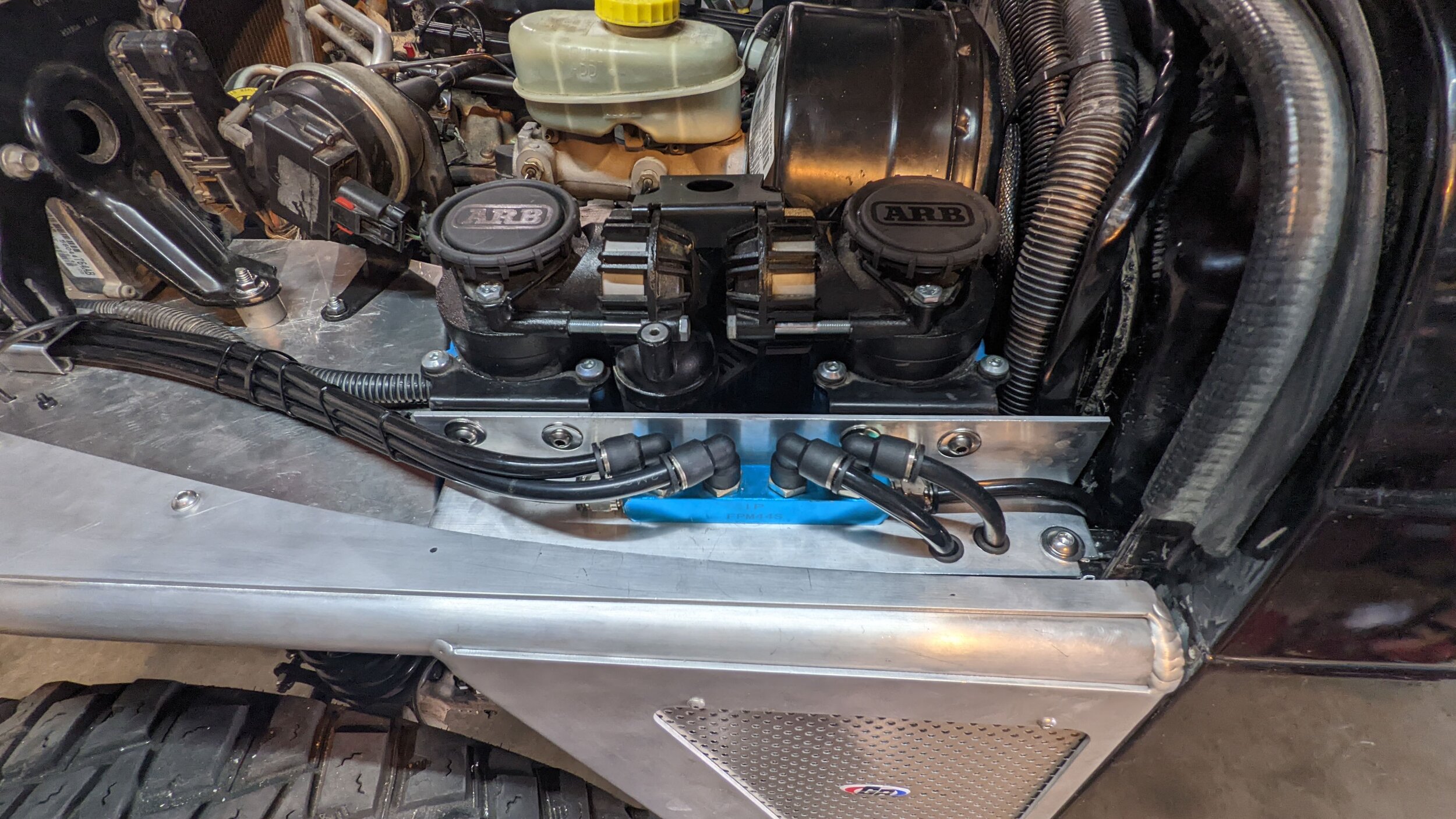

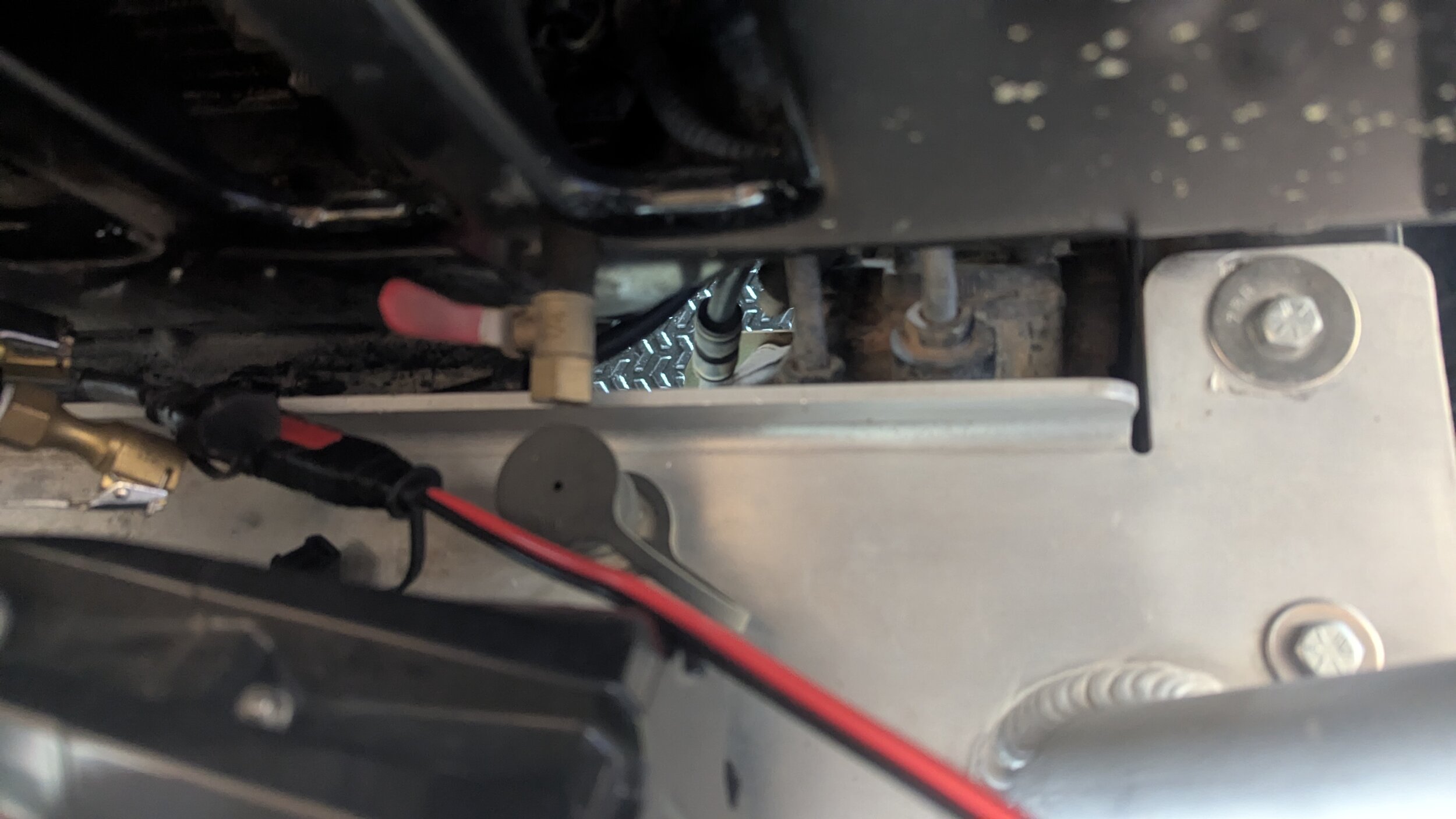

View attachment 611517View attachment 611507

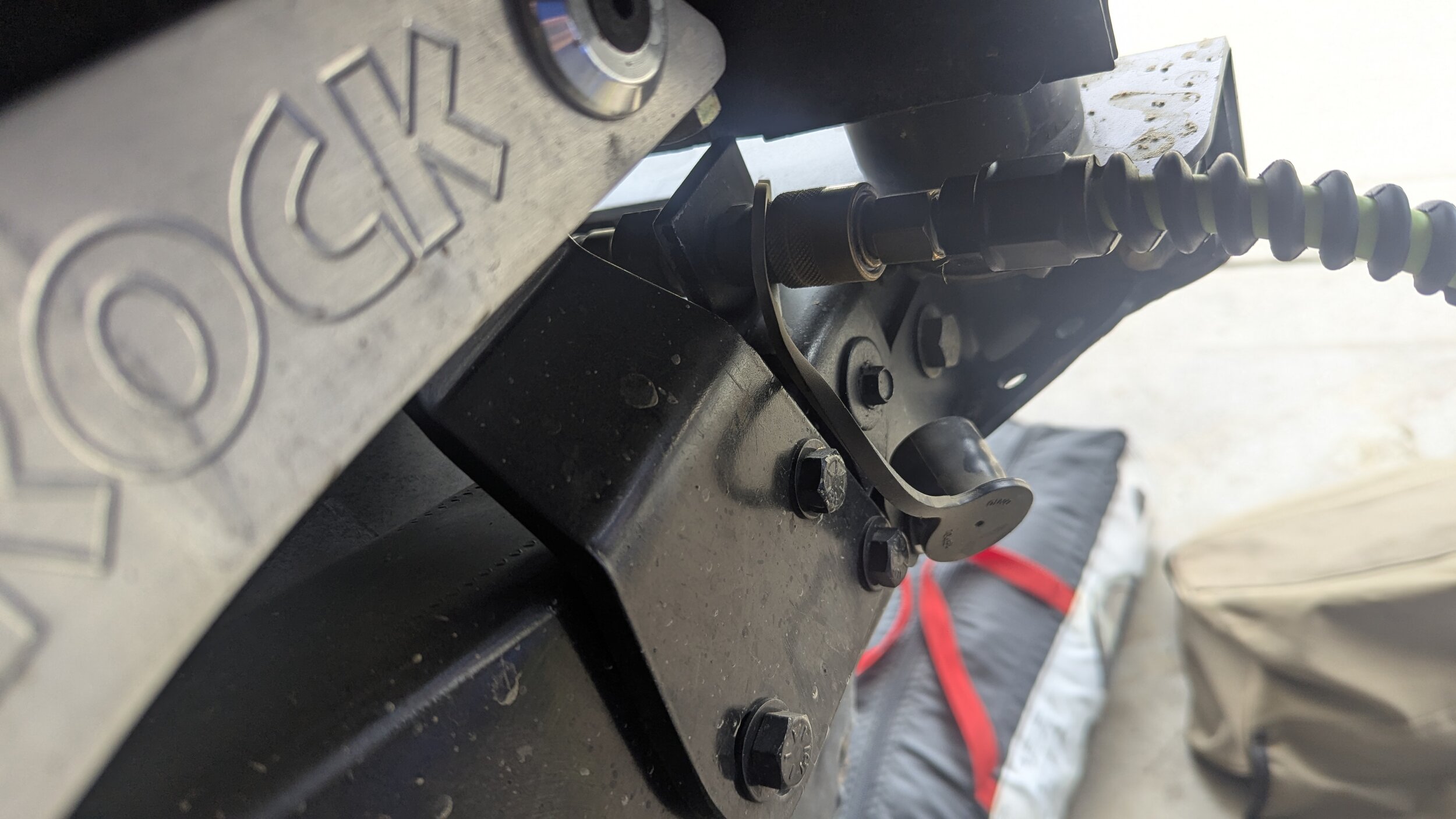

View attachment 611509View attachment 611510

Nice setup! Love the manifold



[Apparition]

I wasnt sure if I ever really timed it with 37's, I know I did w/ 35's, I ran home at lunch and timed it to make sure I wasnt talking out of my neck, I wasnt too far off


I started at 7psi took 6:04 to fill to 27psi.

View attachment 611513
View attachment 611512
View attachment 611516

I then did just one tire, from 7psi to 29psi was 2:01.
View attachment 611511

That's interesting. It looks like there's some efficiency gained by filling 4 vs 1.



[LakeBeard]

That's interesting. It looks like there's some efficiency gained by filling 4 vs 1.

I wonder if that's b/c the schrader valve only allows so much air in?



[KennethS]

Yes very dry. Very seldom do I find any moisture in the bottom of my air compressor tank in my shop

in case anyone was wondering how dry it is here:



[Apparition]

I wonder if that's b/c the schrader valve only allows so much air in?

Interesting thought.



[Rickyd]

Gonna try one of these on that suggestion of an adjustable pressure switch.

https://transducersdirect.com/produ...-adjustable-pressure-switches/?v=2ecd53e541df

-Mac

Hopefully that works out.

You guys could add an adjustable regulator near the compressor output (but not so close it melts)and get almost the same thing too. Since there is no large tank volume,just a small manifold and lines,once the tires are full it won't take long at all for the manifold to reach cut out pressure.

Same end result. Turn it on and walk away. When the compressor stops you are done.

With the benefit of a simple hand knob to change your fill pressure

It's the same way I safely operate rubi lockers with an arb system.

Add a 50psi blow off valve as a safety



[LONGJP2]

When you're the first one aired up, do you leave or wait for your buddies?



[tobiism]

When you're the first one aired up, do you leave or wait for your buddies?

Hahaha you hang around! That's one of the best parts of the trip!

This whole build process is to ease strain on my knees. The speed with which they fill up is a bonus lol



[tobiism]

Hopefully that works out.

You guys could add an adjustable regulator near the compressor output (but not so close it melts)and get almost the same thing too. Since there is no large tank volume,just a small manifold and lines,once the tires are full it won't take long at all for the manifold to reach cut out pressure.

Same end result. Turn it on and walk away. When the compressor stops you are done.

With the benefit of a simple hand knob to change your fill pressure

It's the same way I safely operate rubi lockers with an arb system.

Add a 50psi blow off valve as a safety

I like that idea



[NashvilleTJ]

When you're the first one aired up, do you leave or wait for your buddies?

You can hang around and talk to me - because I’ll be done filling my fodeez long before any of yous ‘lectric pump guys…



[Apparition]

You can hang around and talk to me - because I’ll be done filling my fodeez long before any of yous ‘lectic pump guys…

No doubt



[NashvilleTJ]

No doubt

CO2 —— Hemi
‘Lectric Pump —— LS



[Apparition]

CO2 —— Hemi
‘Lectric Pump —— LS

I may do CO2 on the new rig if it ever moves.

May do twin ARB brushless twins too. Over 9 CFM each. Considerably faster than the current ARB twin.



[mrblaine]

I may do CO2 on the new rig if it ever moves.

May do twin ARB brushless twins too. Over 9 CFM each. Considerably faster than the current ARB twin.

V-Mac



[Apparition]

V-Mac

That is new to me.



[mrblaine]

That is new to me.

You don't want to bolt up a compressor to your truck that can run a jackhammer? They've been around forever. I mean iffen our air production abilities define who wins in a dick swinging contest, why stop at brushless electric, go brushless rotary.



[NashvilleTJ]

You don't want to bolt up a compressor to your truck that can run a jackhammer? They've been around forever. I mean iffen our air production abilities define who wins in a dick swinging contest, why stop at brushless electric, go brushless rotary.

When their under hood model comes with a check valve rated at 70 cfm…



[tobiism]

You don't want to bolt up a compressor to your truck that can run a jackhammer? They've been around forever. I mean iffen our air production abilities define who wins in a dick swinging contest, why stop at brushless electric, go brushless rotary.

I'm just having fun building stuff that I like



[macleanflood]

V-Mac

Yeah I haven't been called that yet...

-Mac



[tobiism]

Today I wired in an adjustable pressure sensor and a Piezo alarm that lets me know when I've reached the desired tire pressure.
